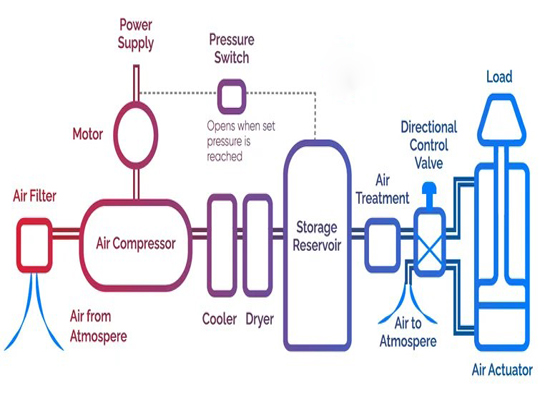

A pneumatic system requires treatment of the ambient air to remove contaminants before it can be used to power any equipment. Therefore, the air preparation system—also called air source treatment components—is essential.

The air filter can effectively remove solid impurities and liquid contaminants from the air, providing the pneumatic system with clean, dry, and stable compressed air. This not only improves the reliability and precision of the equipment operation but also significantly extends the service life of pneumatic components and reduces maintenance costs. It plays an important role in ensuring the performance and longevity of the pneumatic system.

There are many types of compressed air filters, and their working principle is to capture, adsorb, or discharge moisture and particles. Proper cleaning and maintenance of air filters will help your pneumatic system achieve optimal performance and minimize energy consumption.

There is a special combination group called FRL, that composed of several independent filtering, lubricating, and regulating elements, or sometimes all these elements are combined into one integrated FRL unit.

Why Do You Need a Compressed Air Filter?

You need a compressed air filter because normal ambient air is far from clean. Some of the most common contaminants include:

Pollen, dust and rust
stained oil and solvent particles
moisture and condensated water vapour
Cleaning and lubricant residues
Furnace debris

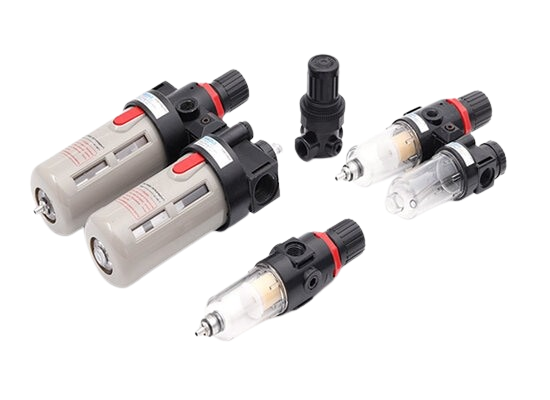

FRLCombination of Filter , Regulator and Lubricator

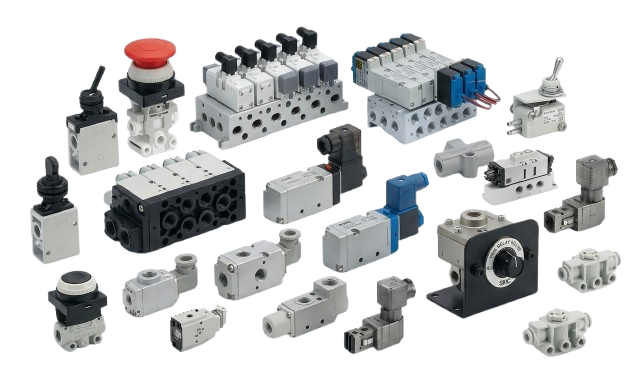

Pneumatic Valves

Consists of 2/2 ways, 3/2 ways, 4/2 ways, 4/3ways, 5/2 ways, 5/3ways solenoid and master valves

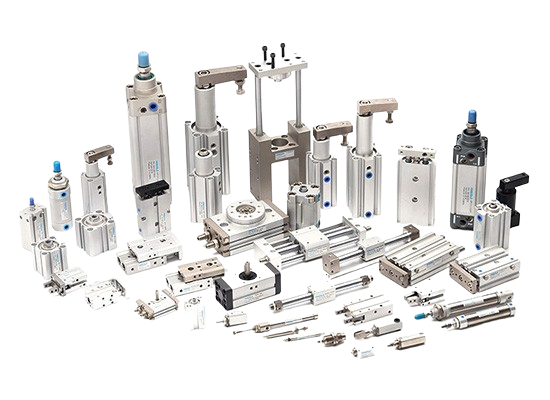

Pneumatic and Hydraulics Air Cylinders

All types of rectangular, round , twin rods, tri-rods andcustom make cylinders availables

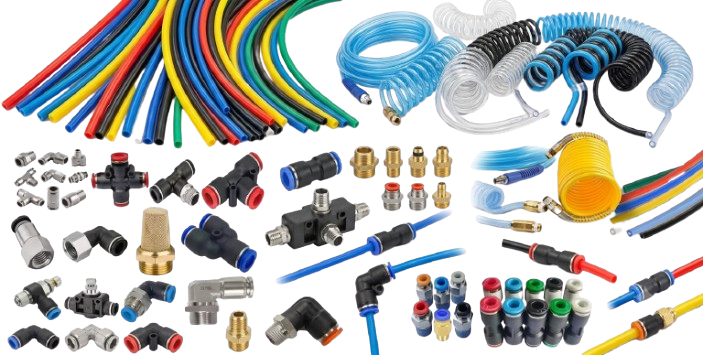

Acessories of Air Tubing and Air Fittings

Differences Types of Tubings such as PU(polyurethene), Nylon, Teflon,spring and etc
Differences type of metric and inches size of fiitings such as plastic, brass, stainless steel, chrome and etc
