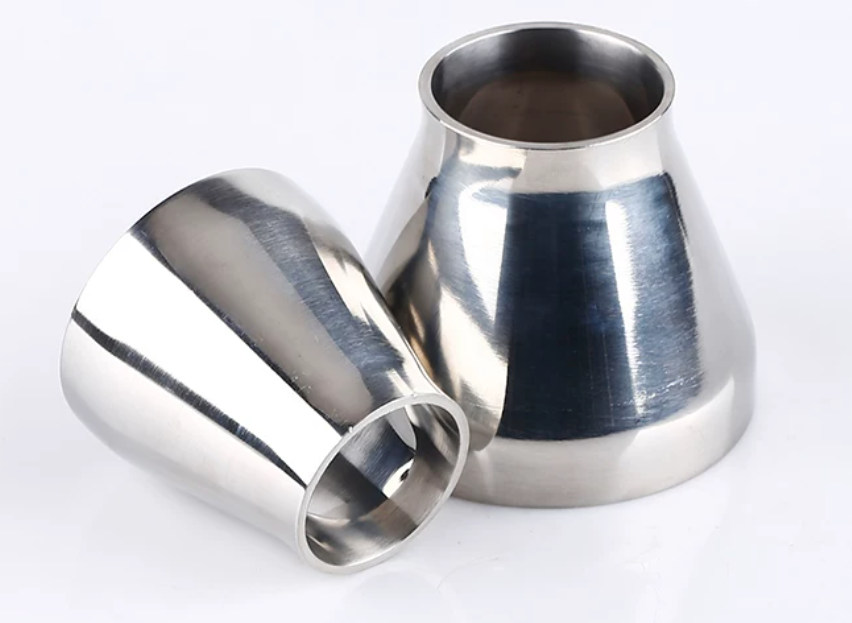

Stainless Steel Reducer

Stainless steel reducers are pipe fittings used to connect two pipes or tubes of different diameters, facilitating a smooth transition in fluid flow. They are critical components in industrial piping, plumbing, food and beverage processing, and chemical systems where corrosion resistance is essential.

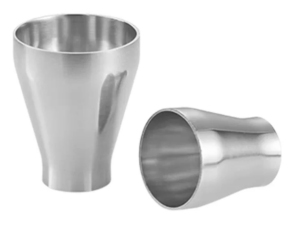

• • Primary Use: Best suited for vertical piping systems.
  • Flow Dynamics: They provide a uniform, gradual transition that minimizes fluid resistance and helps prevent cavitation.
  • Drawback: In horizontal lines, the cone shape can trap air or gas pockets, leading to system inefficiencies.

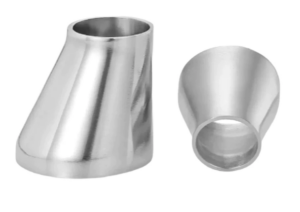

• • Primary Use: Engineered for horizontal piping systems.
  • Horizontal Pump Suction: When installed with the flat side up, they prevent air bubbles from accumulating and getting sucked into pumps, eliminating cavitation hazards.
  • Horizontal Drainage: When installed with the flat side down, they facilitate complete fluid drainage and prevent sediment buildup along the bottom of the line.

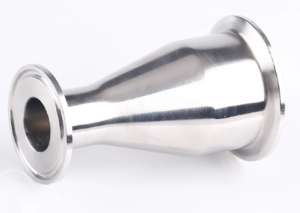

• Connection Varieties: They come in Butt-Weld configurations (for permanent, leak-proof industrial joints), Threaded/Bushings (for modular, mechanical piping), or Tri-Clamp/Sanitary formats (for easy cleaning in food, pharma, and brewing setups).
• Material Grades: The two most prevalent alloys are Grade 304/304L (excellent strength and general corrosion resistance) and Grade 316/316L (enhanced molybdenum content for superior resistance against pitting from chlorides and marine environments).
