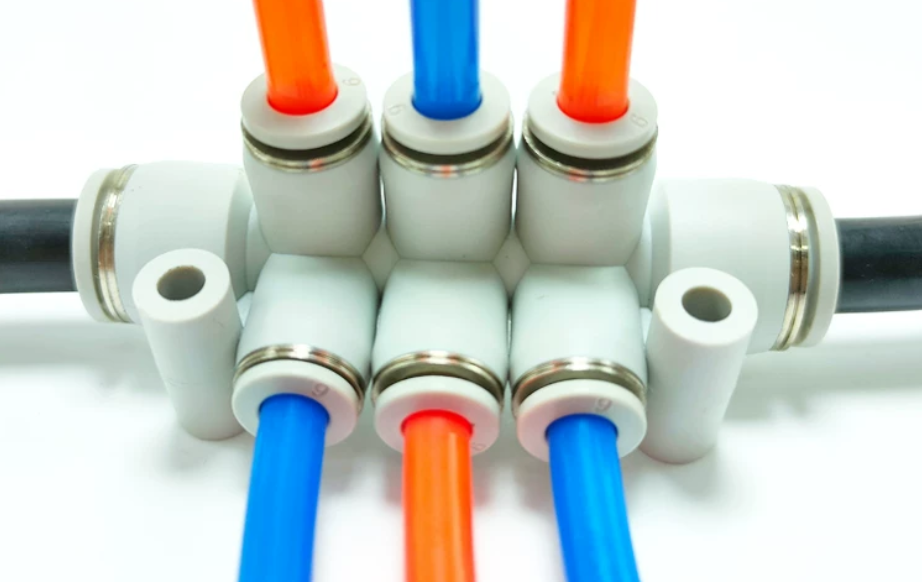

One Touch Fittings Manifold

One-touch manifold fittings (also known as push-to-connect or push-in manifold splitters) are specialized pneumatic components designed to distribute compressed air or vacuum from a single supply line to multiple output lines. Utilizing a toolless collet design, they allow users to securely connect or quickly release tubes simply by pushing them into place or depressing the release sleeve.Key Technical Considerations

Instant Installation: A “one-touch push-to-connect design enables instant tube installation and removal without tools or sealant.” .

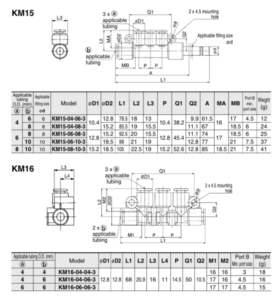

- Equal vs. Reducing: Manifolds are widely available as either equal (inlet and outlets are the same tube diameter) or reducing types (a larger main supply line divided into smaller drop lines).
- Tubing Compatibility: These systems function best with rigid yet flexible polymer tubes, typically accepting polyurethane, nylon, and soft nylon.
- Body Materials: Standard applications lean heavily on durable, lightweight thermoplastics like Polybutylene Terephthalate (PBT), while high-temperature or washdown environments utilize nickel-plated brass or stainless steel.

To help narrow down the exact fitting you need, could you let me know:

The outer diameter (OD) of your main supply tube and your branch lines (e.g., 8mm to 4mm)?
How many outlet ports / channels you need to split the line into?
The maximum operating pressure or environment constraints (e.g., standard factory air vs. high temperature/chemical washdown)
