A C-Type quick coupling primarily refers to two entirely different industrial fitting standards depending on your specific application: Pneumatic C-Type Quick Couplers used for compressed air tools, or Type C Camlock Fittings used for high-volume liq
Pneumatic C-Type Quick Couplings (Air Compressor Hoses)
These are small, push-to-connect or pull-collar couplers commonly used to attach air hoses to compressors, pneumatic spray guns, or air impact wrenches. [1, 2]

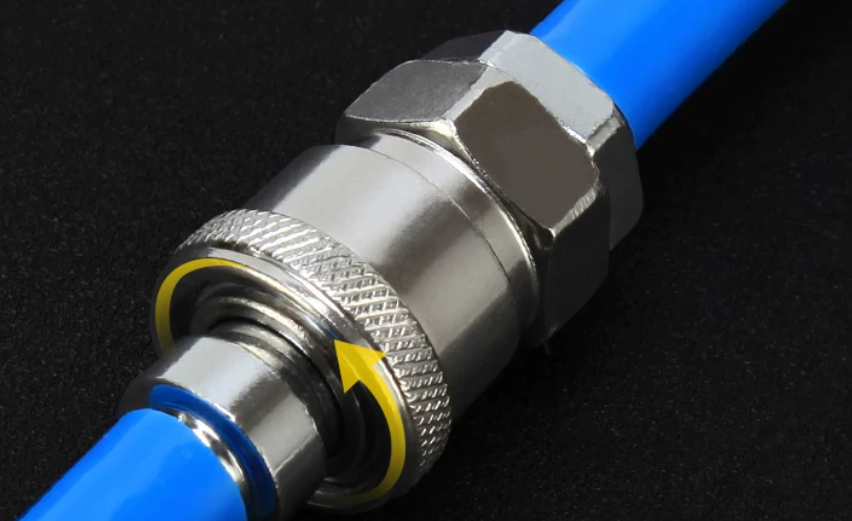

- Design: A female socket body with a sliding spring sleeve. Pulling back the collar allows a matching male plug to lock securely in place. [1, 2, 3]

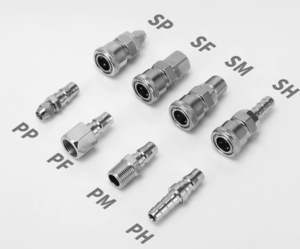

- Common Model Formats: They use code letters based on the connection end:
- SH / PH: Hose barb / plug for insertion directly into flexible hoses.
- SM / PM: Male thread connection.
- SF / PF: Female thread connection.
- SP / PP: Compression nut style for PU/Nylon tubing.
